Ave Maria:


Information:
Location:         Parker, CO
Project Type:     Window Replacement
Year:             Spring 2023



Mission Statement:
Ave Maria Catholic Church needed to upgrade the windows within the church’s sanctuary space. This project work was minimal, but helped me further my understanding of the different elements that go into a building.
Job Duties:
Working on this project, I was able to address/learn the process to replace commercial windows along with creating the proper design details for the replacement.
Clerestory Plan:
Scale: 1/32” = 1’-0”









Refer to Above:

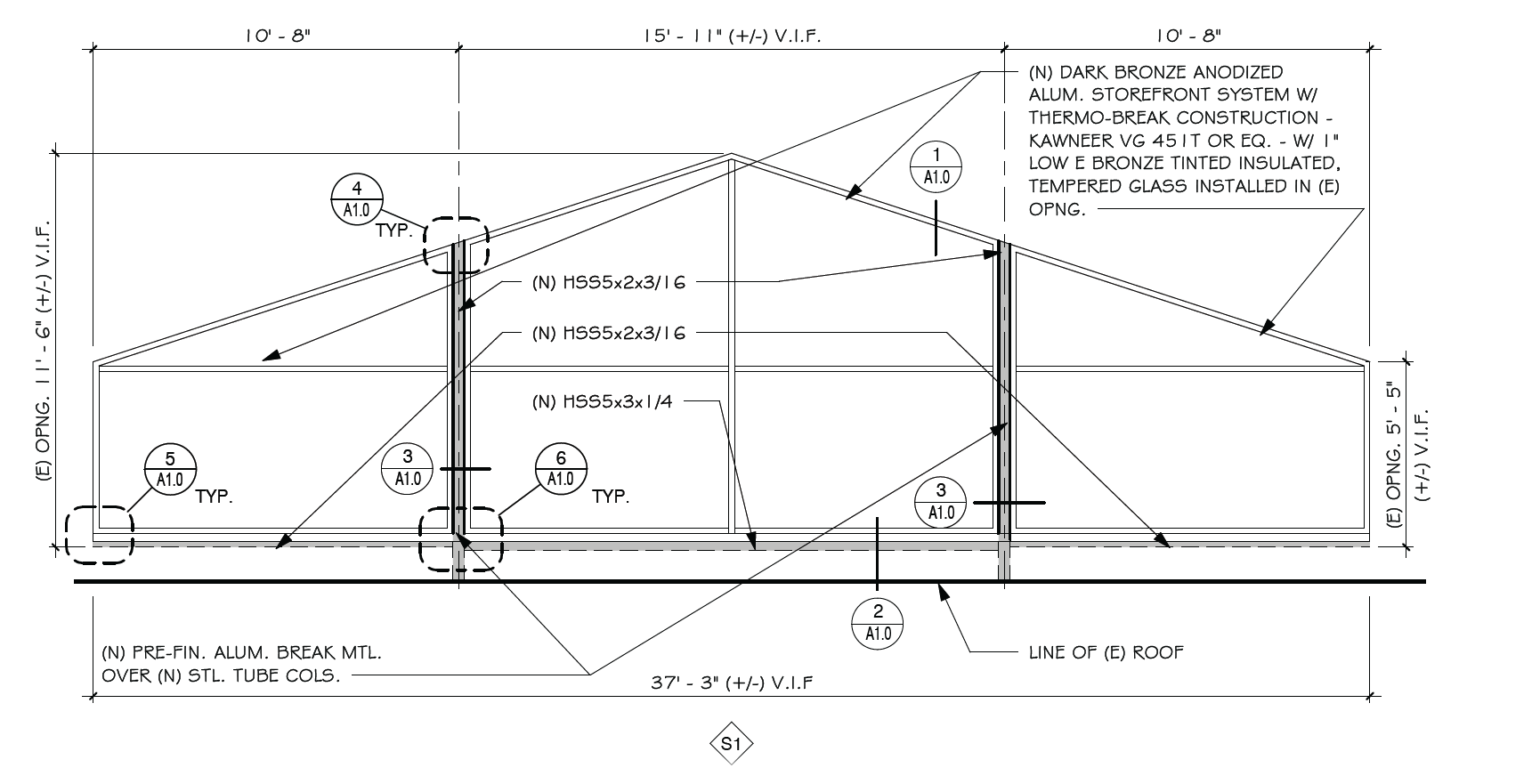

S1

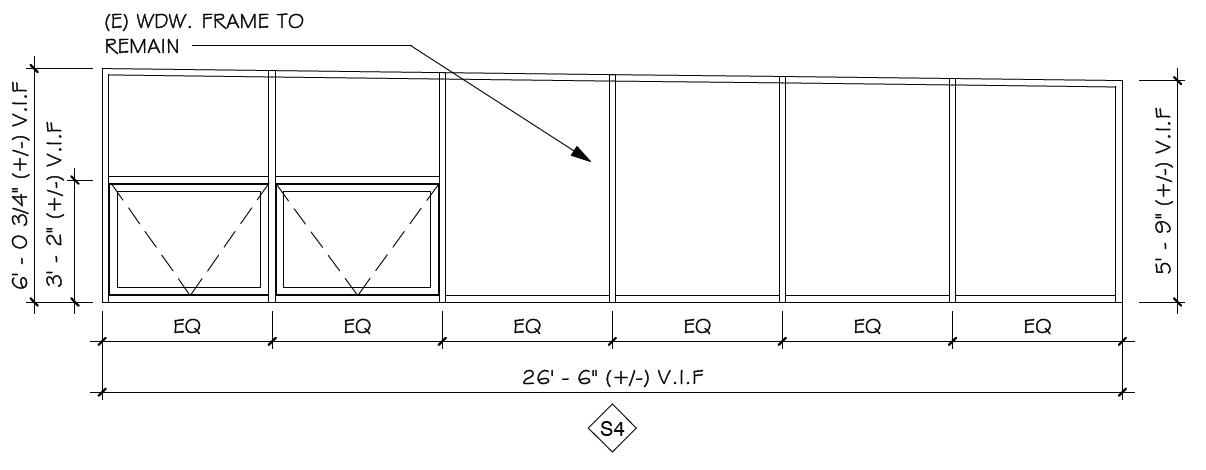

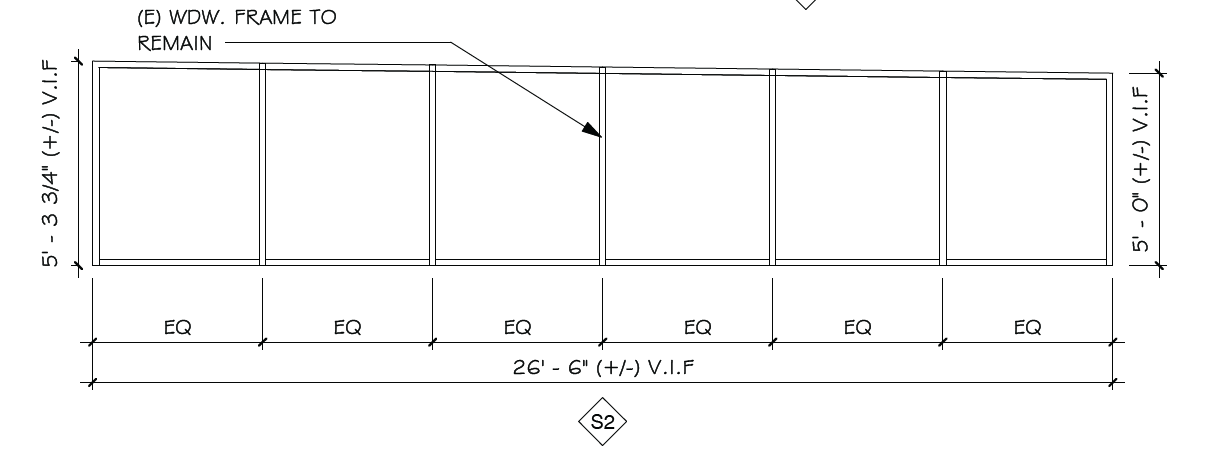

S2 - S4







Window Details:
Scale: 1 1/2” = 1-0”
